(Dimensions are shown in inches for convenience.)
|
(Dimensions are shown in inches for convenience.) |
| To

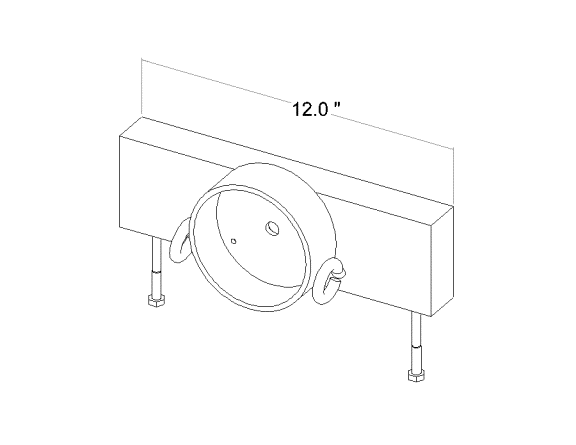

Build:Board
is a 12 inch long piece of 2" x 4" lumber.A
flat faced end cap for 4" plastic drain pipe is screwed on as shown.The
5/16" lag bolts are between 3 and 4 inches long and are screwed in the
bottom of the board (10 inches apart) as shown only until anchored firmly.Use
approximately 1/4" pilot holes for the lag bolts.The
part of the lag bolt that sticks out will act as a post to slide in the
end of the conduit.Holes
are then drilled for 3 inch long 5/16" eyebolts.The
eyebolts are inserted as shown in the drawing.The
eyebolts are used to attach bracing chains and cables to the Tarzan Swing.The
hole in the center of the endcap and board allows the threaded end of an
eyebolt protruding from the top tube
to fit through.The
top
end and top tube are held together
on each end with a wingnut. Click
